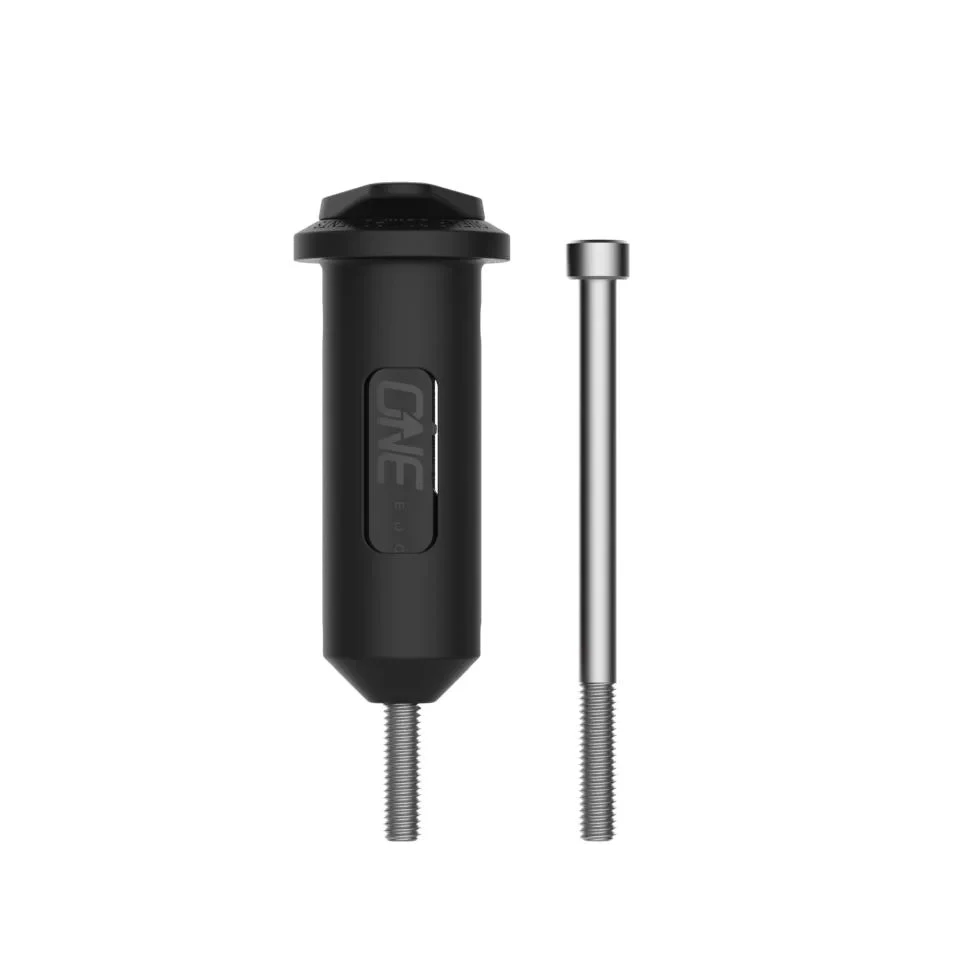

OneUp Components EDC Lite Tool Red

Never get stuck without a Multi-Tool on a ride ever again.

• Light weight (Adds just 75g to your bike)
• Easy to install in less than 5 mins.
• Available in 7 colours (Black, Red, Blue, Green, Orange, Purple, Turq)
• No need to remove your star nut or thread your steerer tube.
• Colour matched to our Composite Pedals, Grips and Handlebar Decals.
• Run a single Multi-Tool on all your bikes

ENSURE YOUR FORK IS COMPATIBLE -VERY IMPORTANT

Incompatible forks: Giant Overdrive 2 Forks. 2022 & newer Fox 38 Forks, Rock Shock 35 Forks,Cannondale Lefty Forks. Carbon Steerers.

STEERER TUBE INNER DIAMETER

The inner diameter of your steerer tube must be at least 24.1mm. OneUp is not currently aware of any tapered steerer tubes that do not meet this requirement. If fitting unsure, you can check this by inserting the tip of the EDC Lite into the steerer tube above the star nut BEFORE lowering the star nut position.

STEERER TUBE LENGTH

Most forks are compatible, except for a small number of forks with very short steerer tubes. For the following cases your fork steerer tube length must meet the minimum length requirement.

• Fox Forks (excluding 38 forks) =190mm min
• Fox 38 Forks =210mm min
• RockShox Forks =210mm min
• All other compatible forks =190mm min

Measure from the underside of your fork crown to the top of your spacer stack, or top of your stem if you are not running any spacers above your stem.
