OneUp Components EDC Pump

The EDC Pump offers a unique storage solution integrated into a high volume pump. It is designed to integrate with the EDC Tool System, CO2 canister or your favorite stash.Craftedfrom aluminum withadurable textured machined finish.

PUMP VOLUME

A mini pump might look appealing, but with typical volumes of 30-60cc it will take hundreds of strokes to inflate a new tubeand has absolutely no chance ofre-inflating a tubeless setup. When you get a flat, you want to fix it as fast as possible as riding time is precious. At 100cc and at 160g our high volume pump has the highest volume to weight ratio on the market.

FAST-ON HEAD

Firmly push the pump head onto the Presta valve until it bottoms out, then pump.With ourfast-onhead the valve stem is securely supported so there’s no chance of bending, breakingor unseatingthe valve and no chance of unscrewing your valve core when you remove the pump.

EDCPUMPSPEC

• 2 Sizes: High Volume 100cc & Compact 70cc

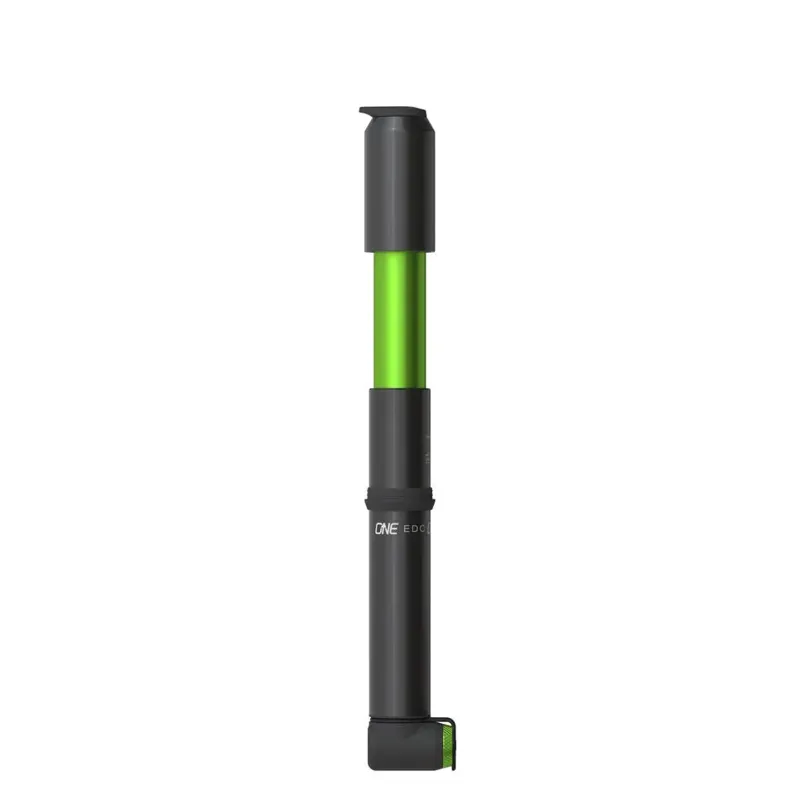

• 1-1/4″ dia x 7.5″ for 70cc (32mm dia x 194mm)

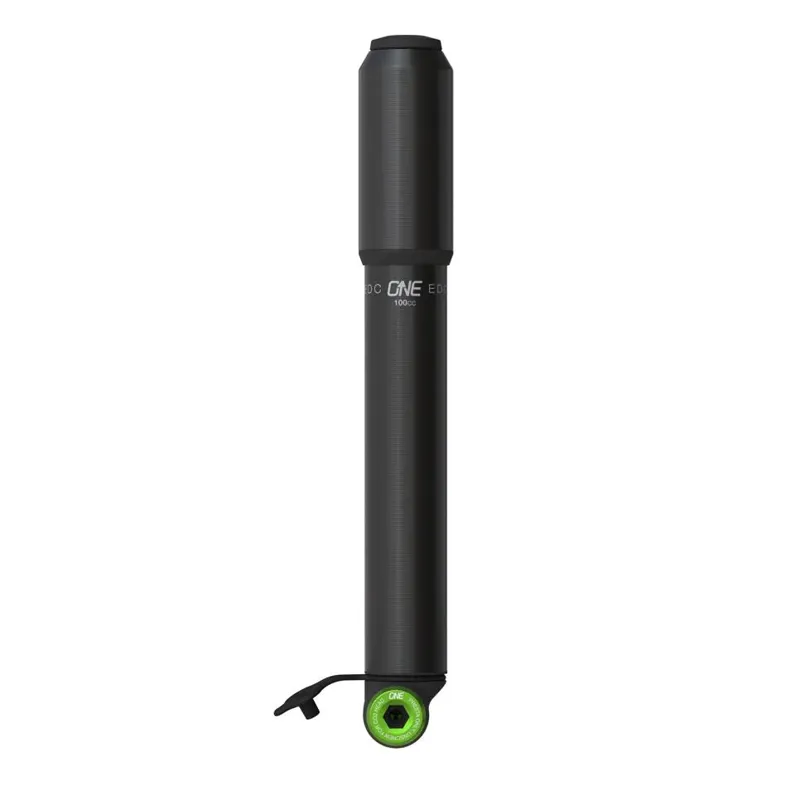

• 1-1/4″ dia x 10″ for 100cc (32mm dia x 254mm)

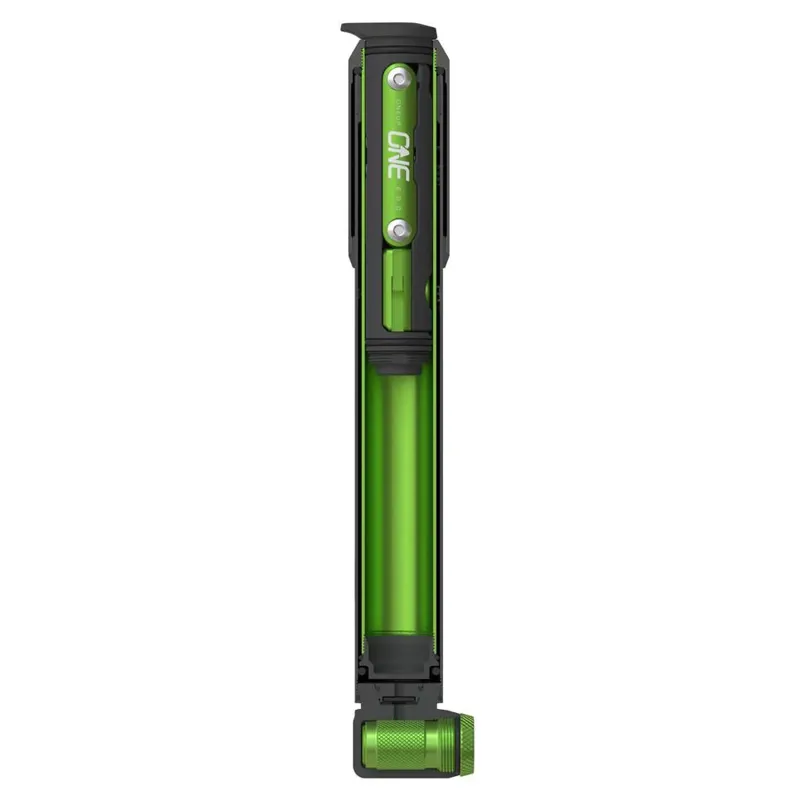

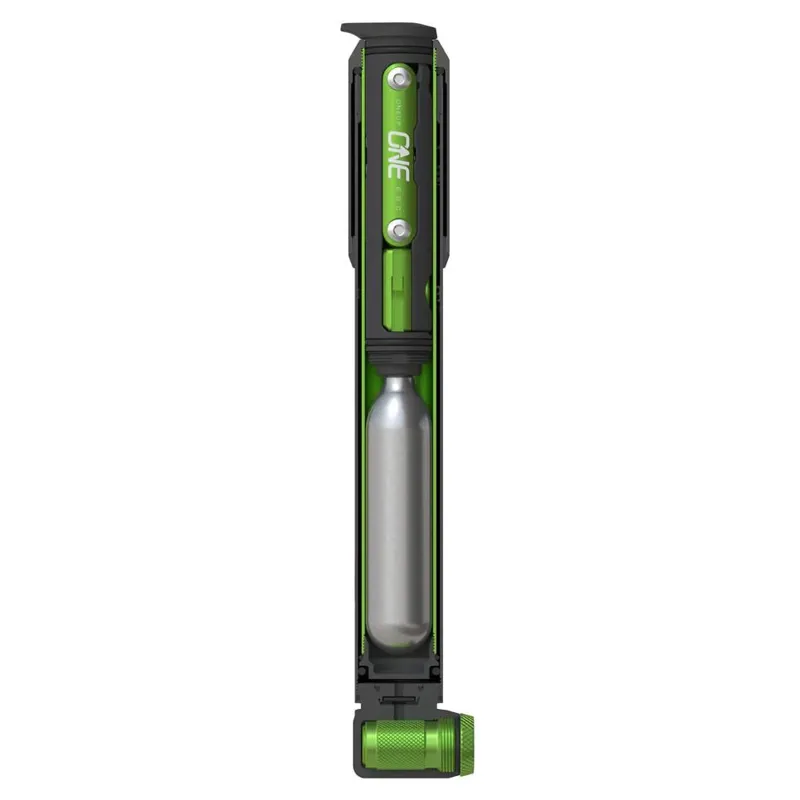

• 100cc Pump holdsEDCTool & the large Storage CapsuleorEDCTool & a 20g CO2
• 70cc Pump holds EDCTool &thesmallStorage Capsuleora 20g CO2
• Fast-On Head (Presta Only) – No threads or locking levers

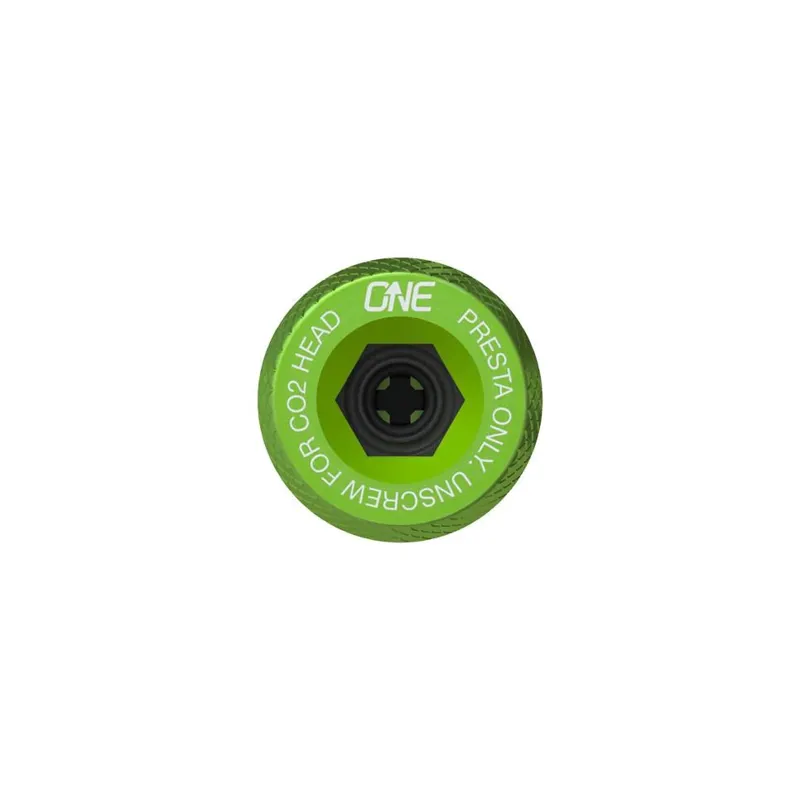

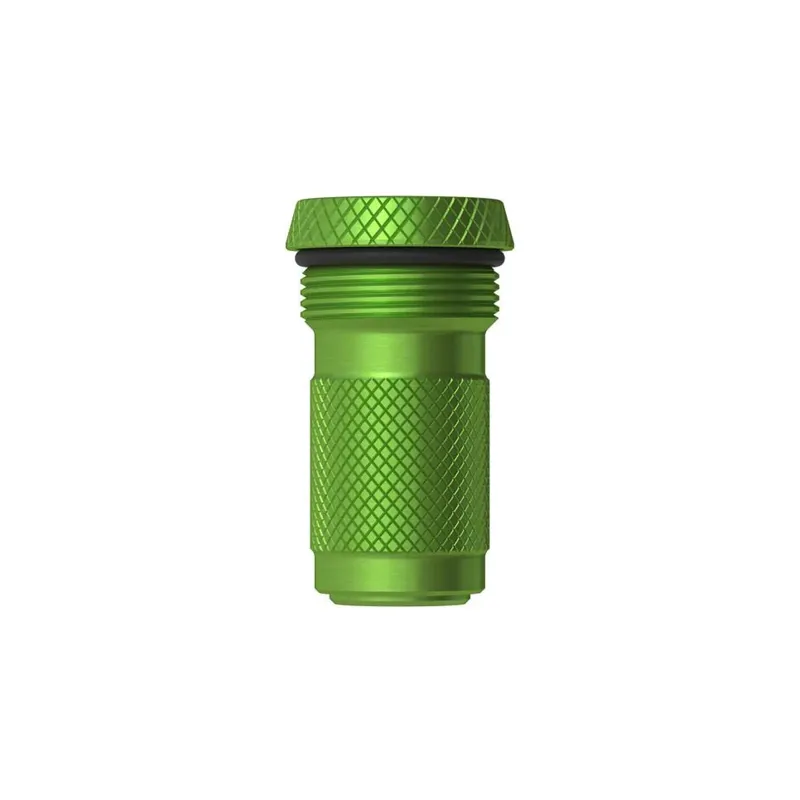

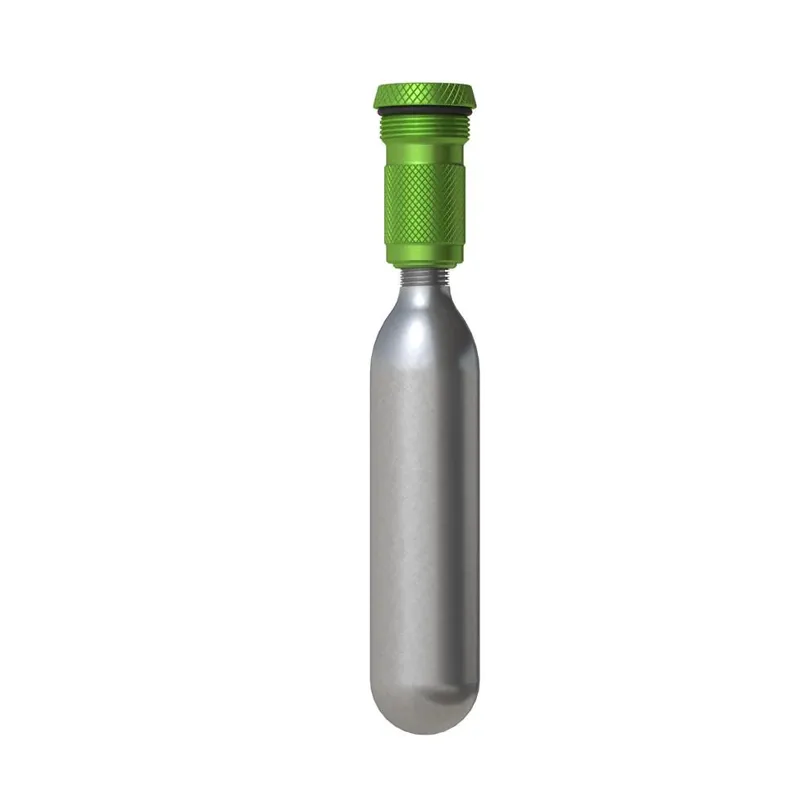

• Integrated CO2 Inflator
• Fully Sealed, Weatherproofed Internals

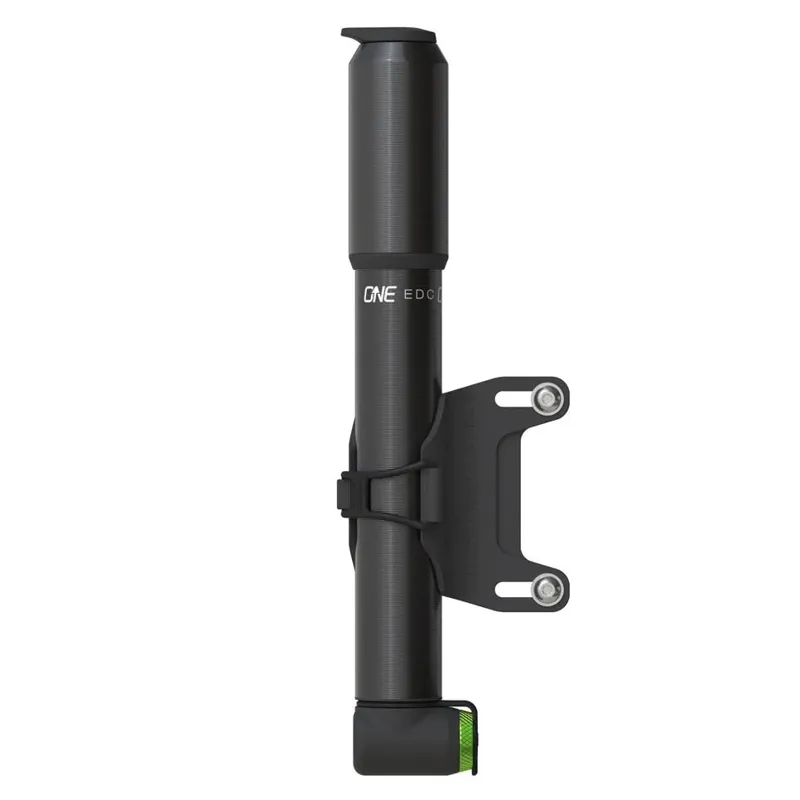

• Includes Bottle Cage Mount

Material:6061-T6

Weight:135g – 70cc, 160g – 100cc (without EDC tool system)

Colour: Black

Patents Pending
